CHV/V/2V

750/900/1100

GENERAL FEATURES

  • Interior and exterior in PVC-coated galvanised sheet metal in accordance with food regulations;
  • Evaporator, condenser and the entire cold circuit in copper;
  • Maintenance free condenser.

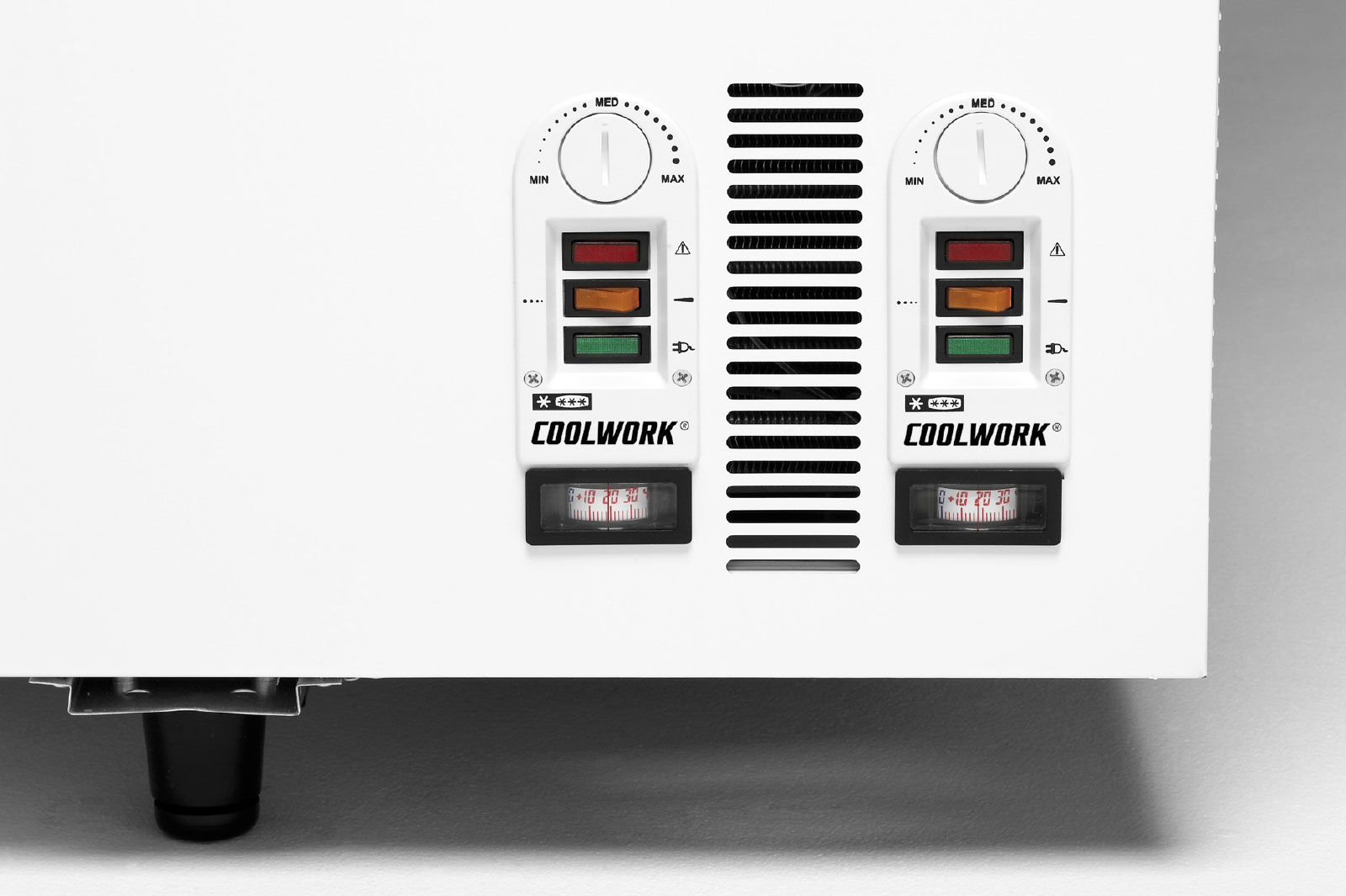

  • 2 refrigeration groups with high performance (COP) and low thermal emission.
  • High storage capacity
  • High energy efficiency and low operating costs.
  • Refrigerant gas R290.
  • Automatic hot gas defrost as option.
  • LED lighting as option.
  • Customisation.

  • chv-v-750
  • chv-v-900
  • chv-v-1100
  • chv-2v-750
  • chv-2v-900
  • chv-2v-1100

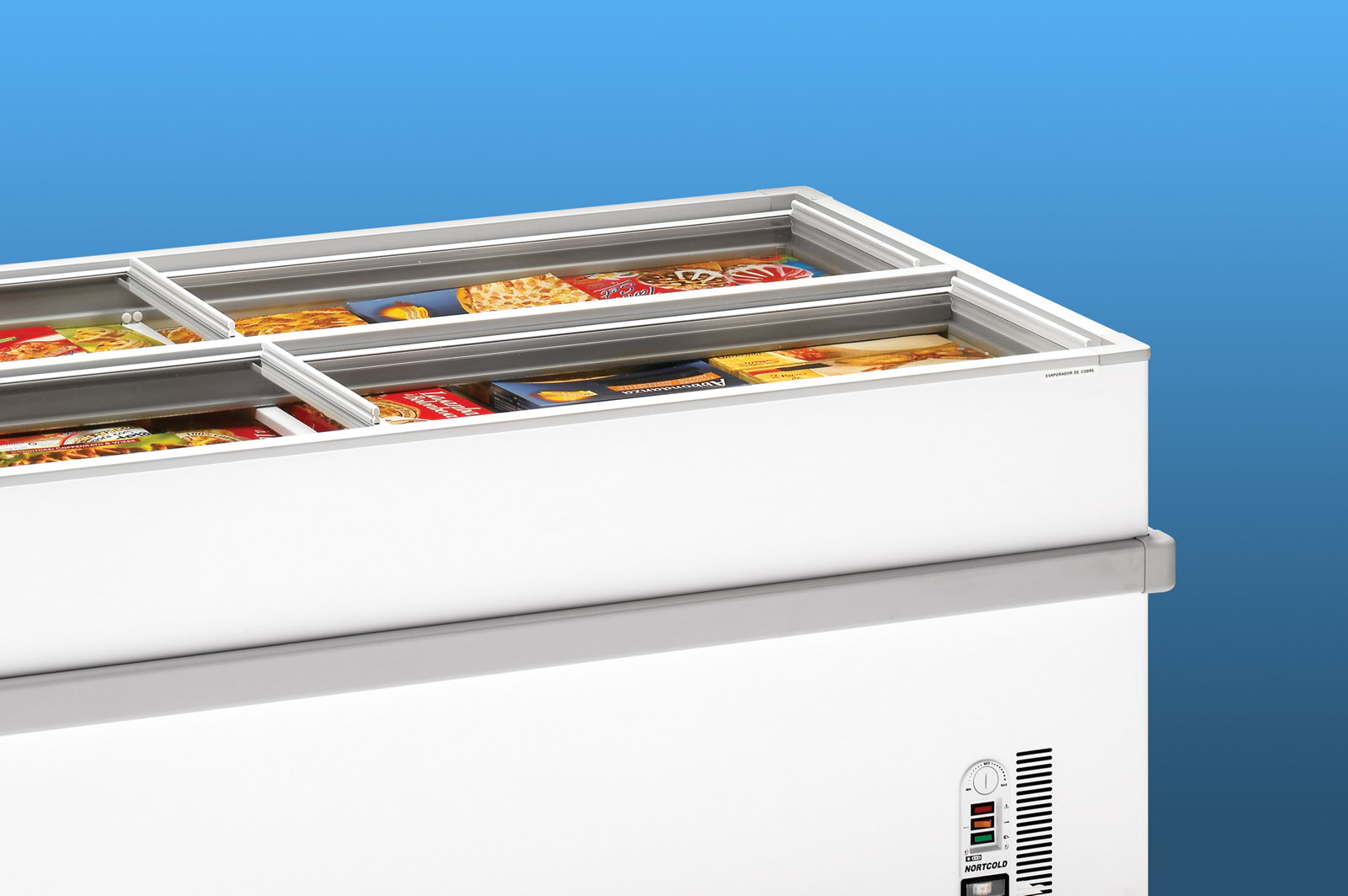

Professional display for frozen/refrigerated products
750 CHV/V R 750 CHV/V DR 900 CHV/V R 900 CHV/V DR 1100 CHV/VR 1100 CHV/V DR
Technical Data
Total Display Area (TDA) m² 0,84 0,84 1,16 1,16 1,36 1,36
Climatic class (EN23953) 3L1 3L1 3L1 3L1 3L1 3L1
Temperature range °C -18 / -22 -18 / -22 -18 / -22 -18 / -22 -18 / -22 -18 / -22
Ambient Temperature Range °C +16 / +25 +16 / +25 +16 / +25 +16 / +25 +16 / +25 +16 / +25
Maintenance free condenser ✓ ✓ ✓ ✓ ✓ ✓
Visual alarm ✓ ✓ ✓ ✓ ✓ ✓
Sound alarm no no no no no no
Led Lighting optional optional optional optional optional optional
HACCP - Hazard analysis and critical control points ✓ ✓ ✓ ✓ ✓ ✓
RS485 comunication optional optional optional optional optional optional
Net volume lt 459 459 652 652 805 805
Gross volume lt 597 597 839 839 1032 1032
Load noise according EN / IEC 60335-2-89 ✓ ✓ ✓ ✓ ✓ ✓
Electrical Data
Voltage/Frequency V/Hz 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50
Rated Power W 345 345 345 345 345 345
Rated Current A 2,5 2,5 2,5 2,5 2,5 2,5
Energy Consumption kWh/24h 3.9 4.5 4.5 5.4 4.9 5.4
Energy Efficiency Index (EEI) 28,0 32,3 25,6 30,8 24,7 27,3
Efficiency class A to G
EPREL QR code
Refrigerant Data
Refrigerant type R290 R290 R290 R290 R290 R290
Number of compressors Un 2 2 2 2 2 2
Refrigerant Charge (per compresor) kg 0,055 0,055 0,057 0,057 0,085 0,085
Evaporator Static Static Static Static Static Static
Defrosting type no Hotgas no Hotgas no Hotgas
Water Evaporating no no no no no no
Dimensions and Weight Data
Cabinet dimensions mm 1550x960x780 1550x960x780 2050x960x780 2050x960x780 2500x960x780 2500x960x780
Packaging dimension mm 1640x1030x840 1640x1030x840 2140x1030x840 2140x1030x840 2590x1030x840 2590x1030x840
Net weight kg 81 81 105 105 125 125
Gross weight kg 137 137 160 160 200 200

Due to the constant development of the product, Arcaboa S.A. reserves the right to change the technical specifications without prior notice.
